Klein Tools 80016 Circuit Breaker Finder: The Tool That Shocked Me With Its Findings

From Mystery to Revelation: My Electrical Discovery

I’ve always been curious about the electrical infrastructure in my home workshop, particularly in my Fab Lab—a compact 8×14-foot room housing my desktop fabrication gear. Like many homeowners, I’ve stared at my electrical panel’s cryptic labels and wondered: which outlets connect to which breakers? How much power can I actually draw before tripping a circuit?

The Problem: Power Uncertainty in the Fab Lab

My Fab Lab houses an impressive array of equipment: four servers, seven 3D printers, and a Glowforge laser cutter. I was operating under the assumption that everything ran on a single 15-amp circuit—a dangerous assumption that could have led to overloaded circuits and potential fire hazards.

The room has six wall sockets, and I needed to know exactly how the power was distributed. Without this knowledge, I couldn’t optimize my equipment layout or ensure safe operation.

Enter the Klein Tools 80016 Circuit Breaker Finder

I purchased the Klein Tools 80016 Circuit Breaker Finder, a device that promised to solve my mapping dilemma. The tool consists of two components:

1. A socket tester that plugs into wall outlets and indicates circuit status via LED lights

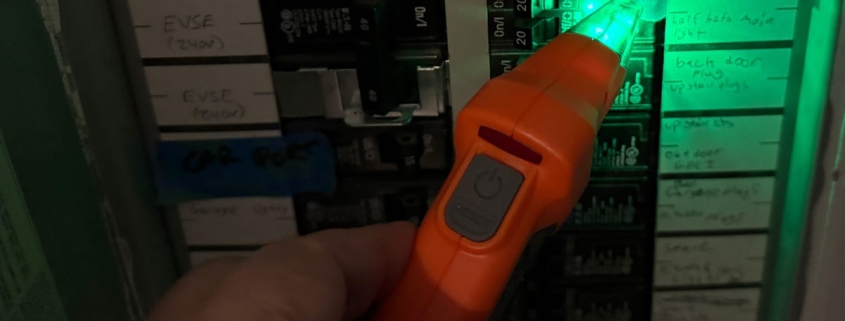

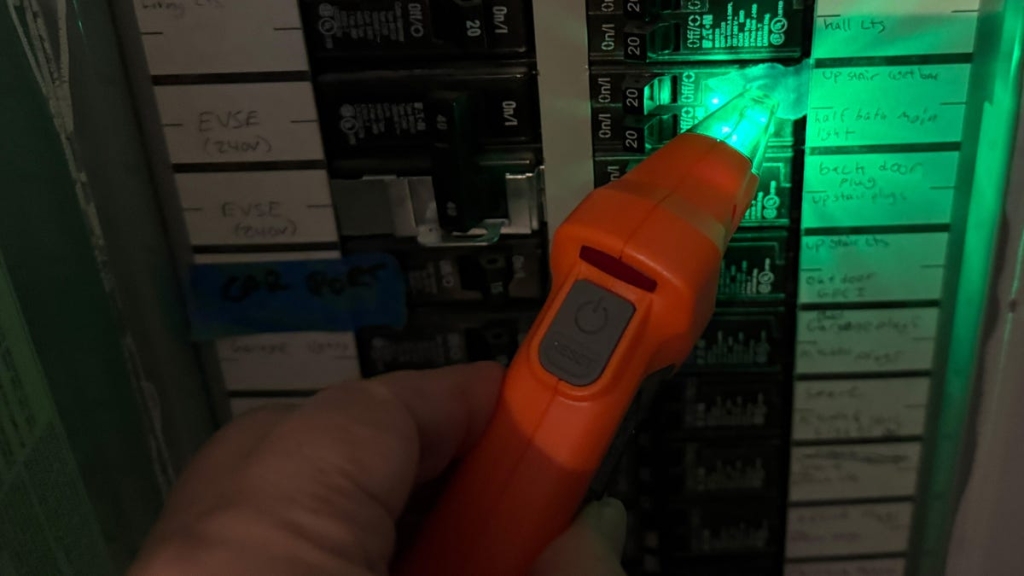

2. A probe that you run along your breaker panel to identify the corresponding breaker

The process is straightforward: plug the socket tester into an outlet, then systematically scan your breaker panel with the probe until you hear an audible tone indicating the correct breaker.

The Shocking Discovery

What I discovered completely surprised me. Instead of the single 15-amp circuit I expected, my Fab Lab had four separate 20-amp circuits powering those six outlets!

The distribution was even more interesting:

• Three outlets each had their own dedicated 20-amp circuit
• Three outlets shared a fourth 20-amp circuit

The most bizarre finding? One outlet powering four servers and four 3D printers was connected to a breaker labeled “MB Lights” (Master Bathroom Lights). The same circuit that powers bathroom lighting also handles my most power-hungry equipment!

Optimizing My Setup

Armed with this knowledge, I called my electrician to make some strategic changes. We used conduit to extend one circuit, allowing me to:

• Isolate servers on the bathroom light circuit
• Dedicate a separate 20-amp circuit to four 3D printers
• Give the Glowforge its own dedicated circuit
• Share the remaining 20-amp circuit among three other 3D printers

Why This Tool Is Worth Every Penny

The Klein Tools 80016 Circuit Breaker Finder, priced at $65, proved invaluable. Without it, I would have continued operating under false assumptions, potentially overloading circuits and limiting my equipment’s functionality.

For DIY enthusiasts, home office setups, or anyone running multiple devices in a single space, this tool provides peace of mind and enables optimal electrical planning.

Final Thoughts

The Klein Tools 80016 Circuit Breaker Finder transformed my understanding of my home’s electrical infrastructure. It’s not just a tool—it’s an investment in safety, efficiency, and peace of mind.

Have you ever mapped your home’s electrical circuits? Are you operating under assumptions about your power capacity? Share your experiences in the comments below!
